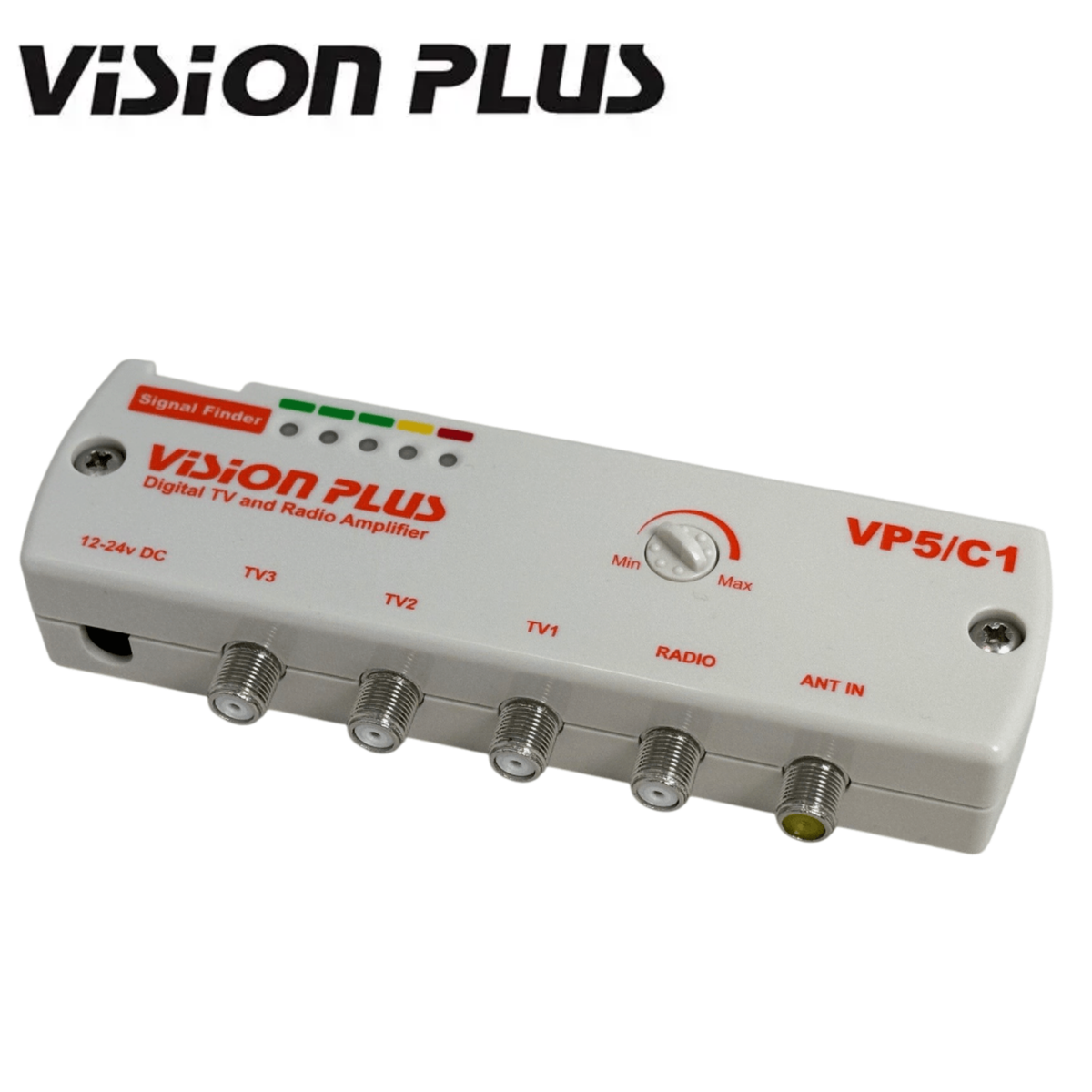

Vision Plus VP5 Signal Amp/Finder - TV & Radio

Designed to reduce interference from 5G/4G LTE signals, the amplifier exhibits excellent filter characteristics with >30dB suppression for frequencies below 400MHz. It is also compliant with Class 1 EN 303 354 standards for effective filtering of 5G frequencies. Additionally, the amplifier filters TETRA signals below 470MHz.

There is also a non-amplified outlet for FM Radio reception when used in conjunction with a UHF/FM antenna.

This unique product also incorporates a dedicated Signal Finder which will enable you to locate the strongest available digital TV signal. This powerful amplifier with high gain and low noise capabilities will ensure improved performance especially in poor reception areas.

Specification:

• On/Off switch
• Variable gain control
• 3 TV outputs
• 1 FM Radio output
• Frequency Range UHF 470-694 MHz
• Frequency Range VHF 40-230 MHz
• Frequency Range FM 88-108 MHz
• Amplifier Gain Max 18dB
• Gain Adjustment 1 to ≃ 16 dB
• Flatness +1.5dB
• Noise Figure 2.2dB
• Output Impedance 75ohms
• Signal Handling 80 dBμV
• Power Supply 10.8-28v DC
• Power Consumption 95 mA
• Dimensions 157wx46hx28d (mm)
