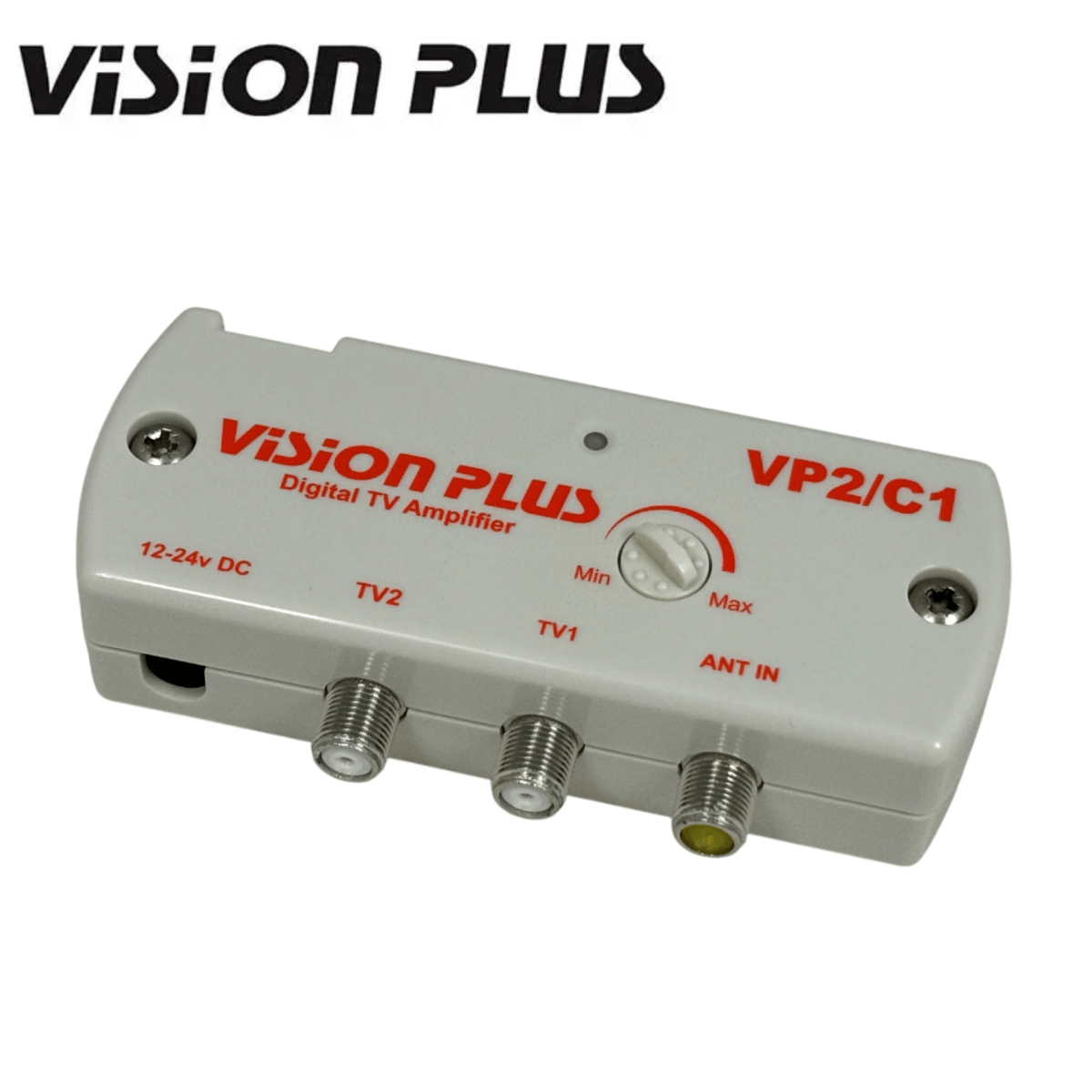

Vision Plus VP2 Signal Amplifier TV ONLY

Designed to reduce interference from 5G/4G LTE signals, the amplifier exhibits excellent filter characteristics with >30dB suppression for frequencies below 400MHz. It is also compliant with Class 1 EN 303 354 standards for effective filtering of 5G frequencies. Additionally, the amplifier filters TETRA signals below 470MHz.

This powerful amplifier with high gain and low noise capabilities will ensure improved performance, especially in those areas that suffer with poor reception.

Specification:

• On/Off switch
• Variable gain control
• 2 TV outputs
• Frequency Range UHF 470-694 MHz
• Amplifier Gain Max 18dB
• Gain Adjustment 3 to ≃ 18 dB
• Noise Figure 2.2dB
• Output Impedance 75ohms
• Signal Handling 80 dBμV
• Power Supply 10.8-28v DC
• Power Consumption 55 mA
• Dimensions 115wx46hx28d (mm)
