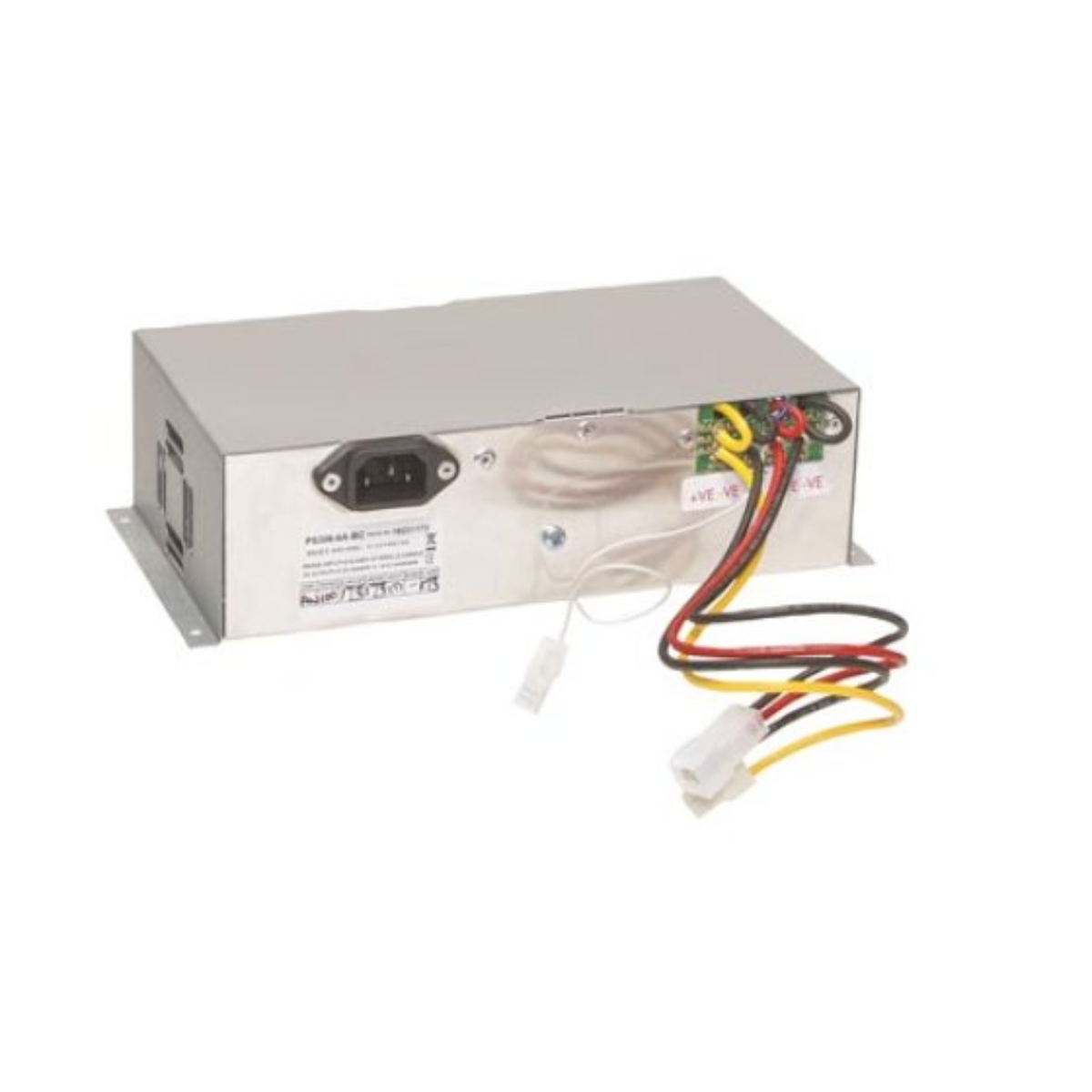

Dual Stage Charger. Transformer & Battery Charger Dual Stage 20 Amp Output

Dual Stage Charger. Transformer & Battery Charger Dual Stage 20 Amp Output. The
complete 12v Supply Unit, A fully Automatic Supply Direct to Caravan appliance and Electronically
Controlled Battery Charging.

Size: (W) 250mm x (D) 125mm x (H) 67mm.Output 1: 13.8 DC Volts - 20
Amp

DC Power. Output 2: 6 Amp 3 Stage Battery Charging Boost / Equalisation / Float.

Fitted as Standard to major Manufacturers:

• Bailey Approach 1, Bailey Approach II
• Bailey Autograph
• Bailey Advance,

• Coachman Pastiche (up to 2015)
• Coachman VIP(up to 2015)
• Coachman Laser (up to 2015)
• Elddis Encore (Range), Equi-Trek Evolution.

There is now an extra white lead that is only used on 2015 Elddis

Bailey motorhomes - if you are replacing a transformer unit this lead can just be tucked out of the
way and does not need to be connected to anything.

• BCA Part Number: PS301-8A-BC

• Replaces older PS306-6A-BC versions

PLEASE DO NOT HESITATE TO CALL US ON 01543 372400 IF YOU NEED ANY ASSISTANCE.
