PV Logic 120W Fold Up Solar Panel

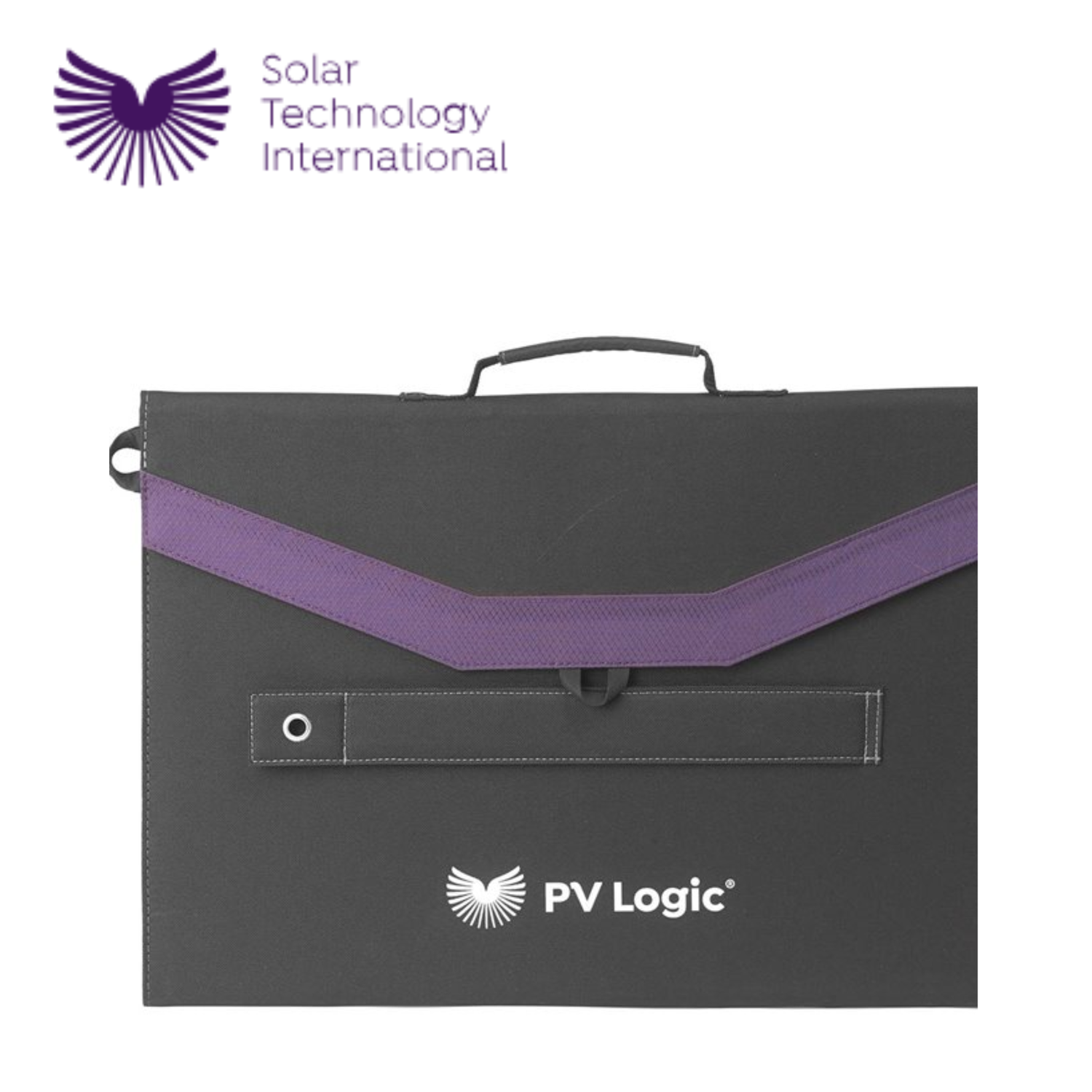

The 120 Watt folding panel consists of twin crystalline solar panels that folds into a carry case, making it the perfect solar panel solution where portability, space and weight are critical. The fold up solar panel is ideal for caravans, boats, campervans and motor homes and connects directly to the battery thanks to its inline charge controller and connectors.

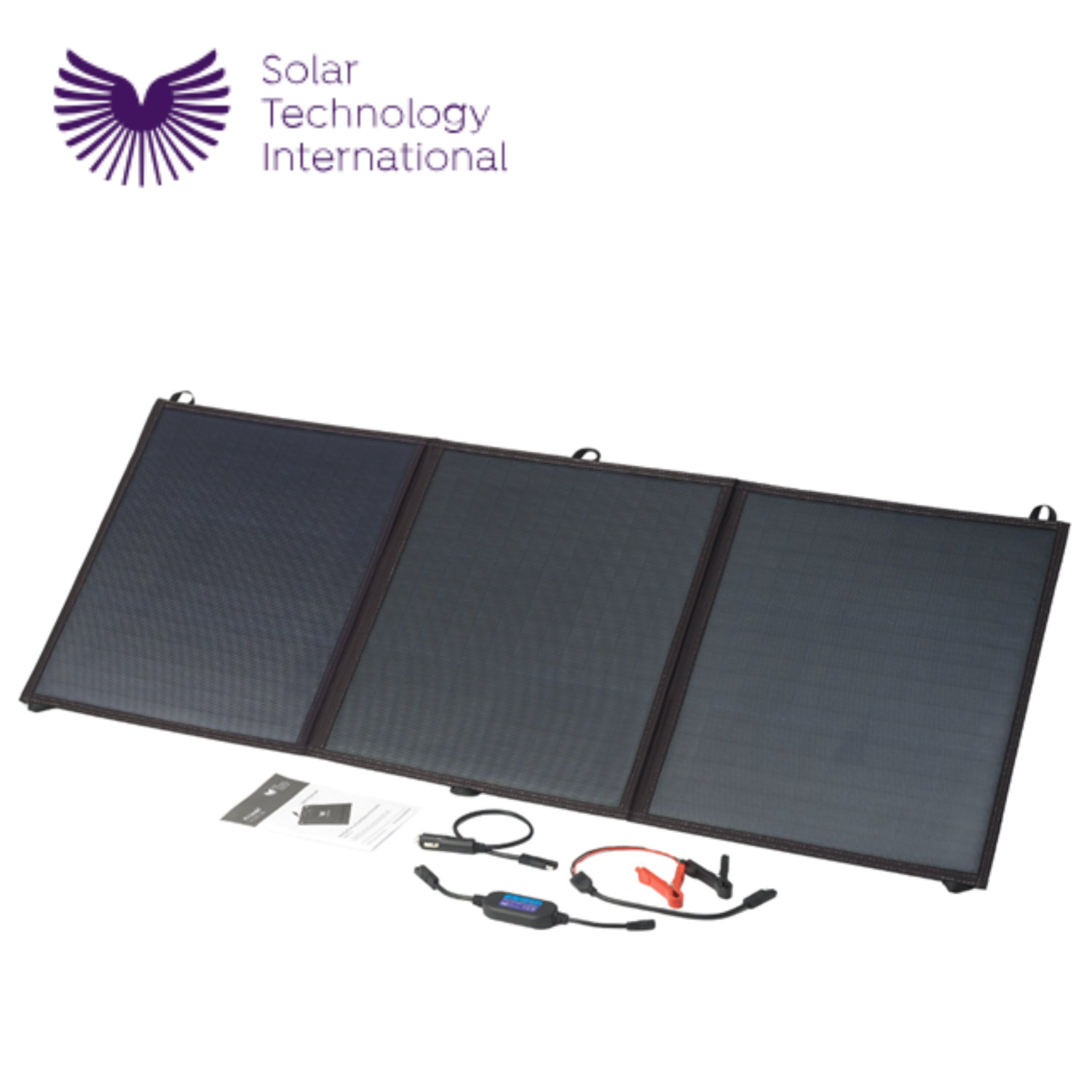

The 120W panel is supplied with;

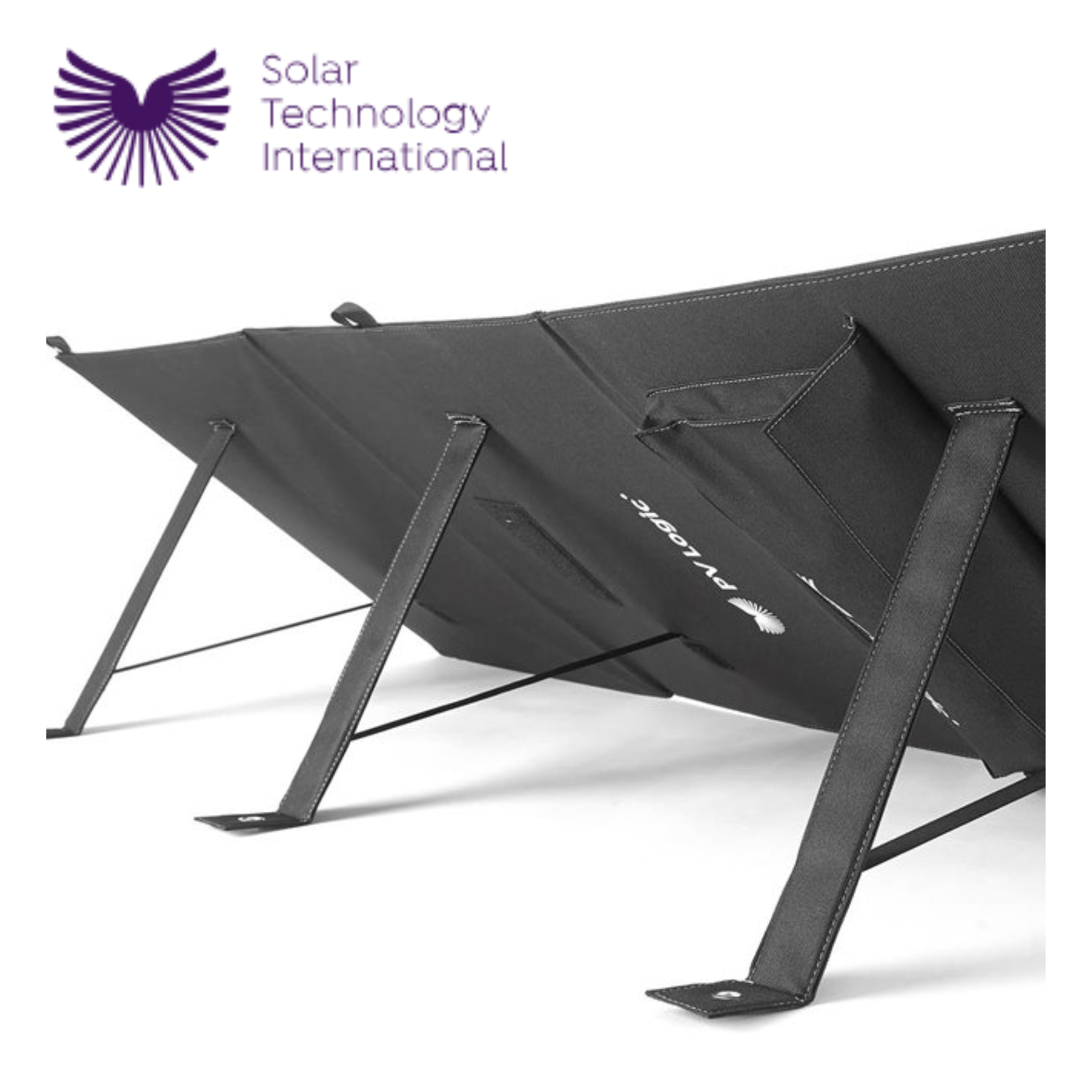

• Integrated fold away stand
• Extension cable with crocodile clips and 12V auto plug
• User manual
• 10A charge controller with in built diode to prevent reverse battery feed
• Two year warranty

Specifications

• Solar Panel - 120W
• Max Current (Imp) – 6.06A
• Max Voltage (Vmp) – 19.8V
• Approximate Watt-Hours Per Day – 780W
• Approximate amp-Hours Per Day – 60A
• Inline Controller Rating – 10A

Accessories Included

• Croc clips
• 500mm Cable
• male car plug
• 400mm Cable
• Cable length between panel and final connections - 2.9m

Dimensions

• Folded – 523 x 450 x 45mm
• Unfolded – 523 x 1350 x 45mm
