PV Logic 40W Fold Up Solar Panel

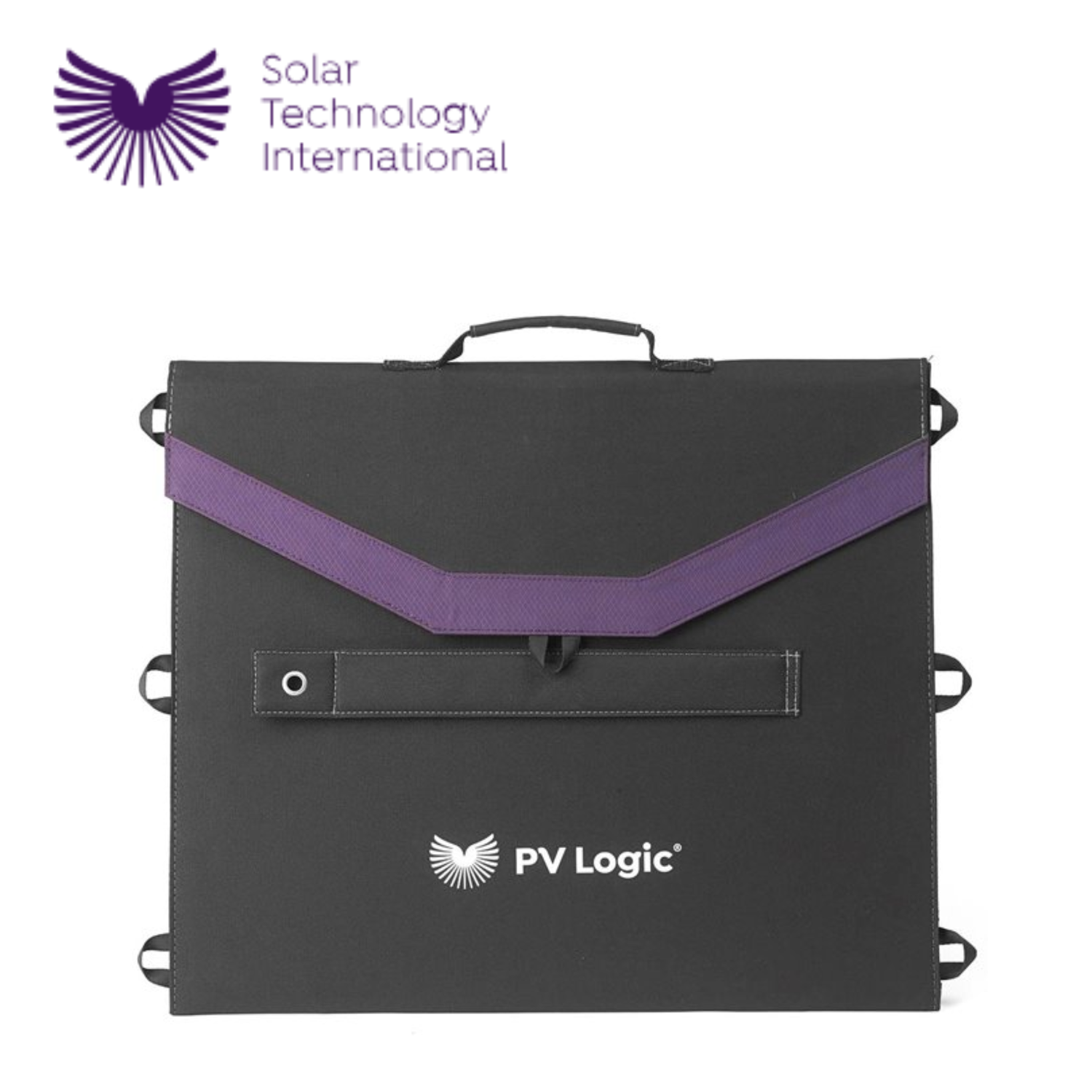

The 40 Watt folding panel consists of twin crystalline solar panels that folds into a carry case, making it the perfect solar panel solution where portability, space and weight are critical. The fold up solar panel is ideal for  camping and small campervans and connects directly to the battery thanks to its inline charge controller and connectors. The 40W panel also connects to our Hubi Go battery hub.

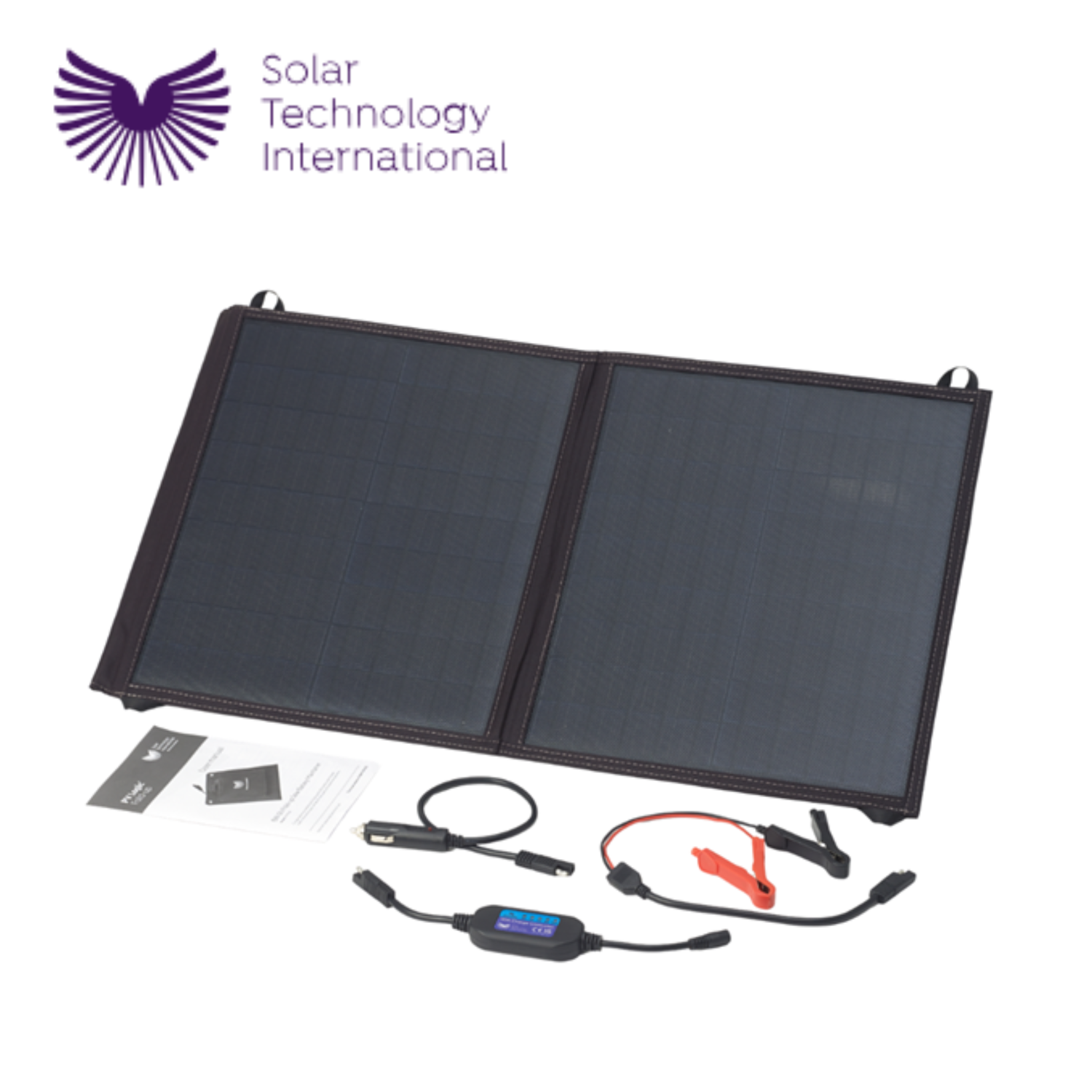

The 40W panel is supplied with;

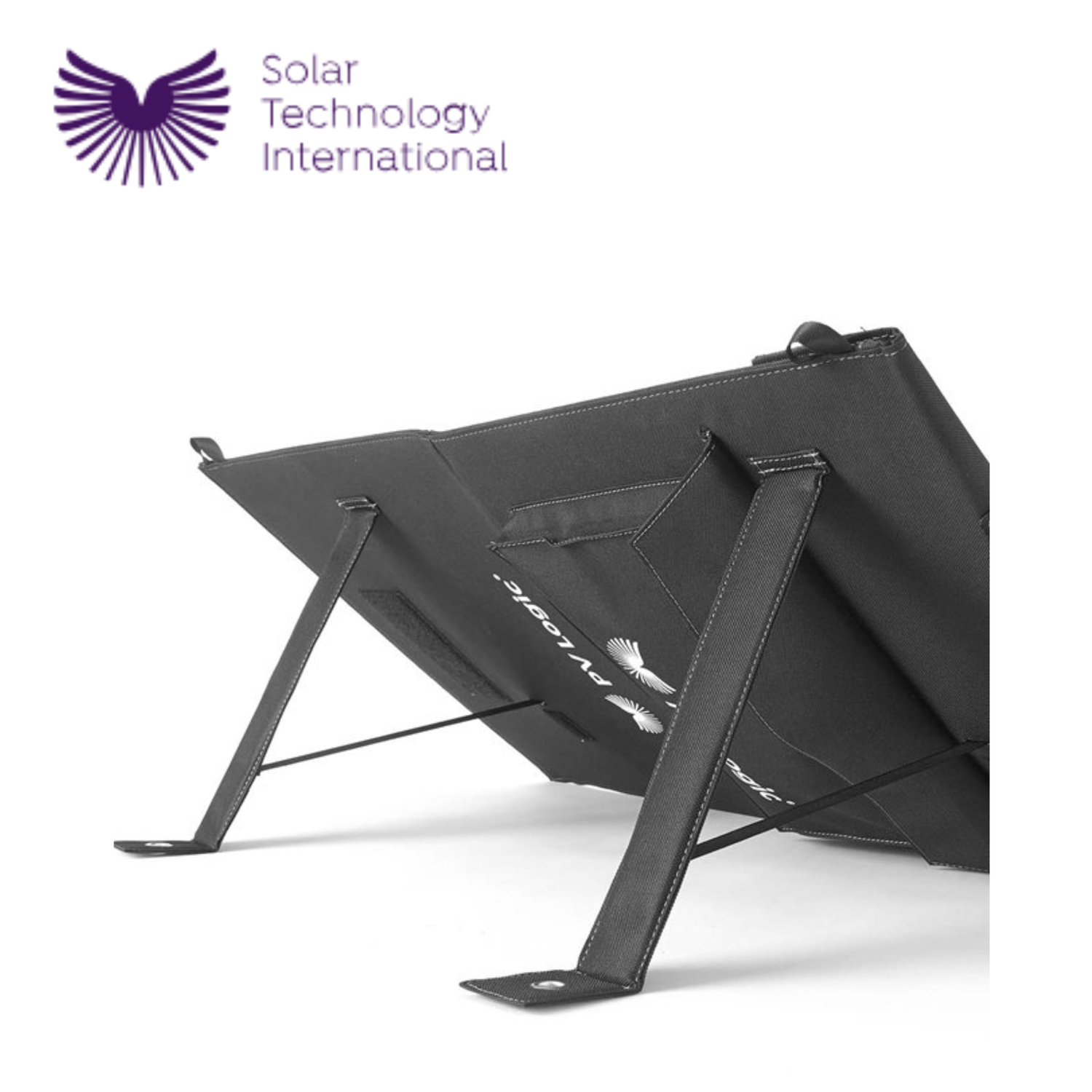

Integrated fold away stand

Extension cable with crocodile clips and 12V auto plug

User manual

10A charge controller with in built diode to prevent reverse battery feed

Two year warranty

Specifications

• Solar Panel - 40W
• Max Current (Imp) – 2.02A
• Max Voltage (Vmp) – 19.8V
• Approximate Watt-Hours Per Day – 260W
• Approximate amp-Hours Per Day – 21A
• Inline Controller Rating – 10A

Accessories Included

• Croc clips
• 500mm Cable
• male car plug
• 400mm Cable
• 12V autoplug connections
• Cable length between panel and final connections - 2.9m

Dimensions

• Folded – 413 x 366 x 45mm
• Unfolded – 413 x 720 x 45mm
